Recommendation of instruction New Holland LS160 LS170 Skid Steer Loader Parts Catalogue Manual
The most important feature of this manual is its professionalism. The manual objectively introduces and scientifically explains the contents of the product, so as to understand the characteristics of the product, master the operation procedures of the product, and know how to repair the New Holland LS160 LS170 Skid Steer Loader. The content of this manual is perfect, not like an instruction book, but more like a textbook. The new knowledge, new technology and graphic interpretation contained in it also play a role in spreading knowledge.
New Holland LS160 LS170 Skid Steer Loader Parts Catalogue Manual is divided by illustrations to show you the detailed structure and functions of the NEW HOLLAND LS160 LS170 SKID STEER LOADER. The illustrations are clean and tidy, and its full of details. And the text at the bottom is also explained with the illustrations, which makes the whole display more stereoscopic.
Through the introduction of the above, I’m sure you can feel that this New Holland LS160 LS170 Skid Steer Loader Parts Catalogue Manual is both an illustrative introduction to the product and its main functions. It is practical, objective and accurate to reflect the product. Guidance includes the knowledge and form diversity of guiding consumers to use and maintain the product. The expression form is in the form of text, as well as tables, pictures and photos. I believe that as long as you have New Holland LS160 LS170 Skid Steer Loader Parts Catalogue manual, you can understand the performance, components and maintenance of this New Holland LS160 LS170 Skid Steer Loader, because this manual is really succinct but not simple, the content is substantial but not complicated. It is a real service for customers. This manual is enough about this skid steer loader.
Parts Catalogue Manual Covers:
Covers the following models:

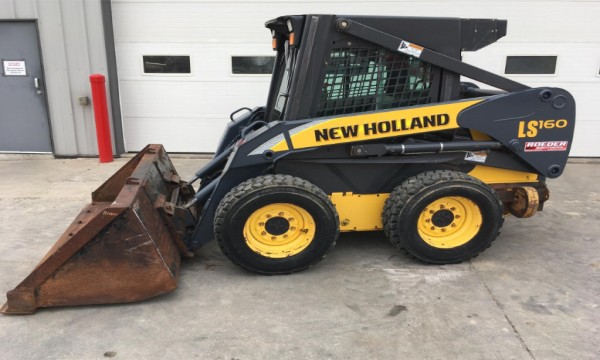

New Holland LS160 Skid Steer Loader
New Holland LS170 Skid Steer Loader
Service Parts Catalogue Manual Covers:
Engine pictorial
Engine attaching equipment pictorial
Hydrostatic drive pictorial
Electrical pictorial
Hydraulic system pictorial
Sheet metal & decals pictorial
Boom & bucket pictorial
Cab, operator”s platform, & controls pictorial
Wheels & tires pictorial
Chassis pictorial
Accessories & kits pictorial
Attachments pictorial
Engine pictorial
Engine, ls160
Engine, ls170
Cylinder block, ls160
Cylinder block, ls170
Block heater kit
Cylinder head
Cylinder head- ls160, s/n 124735 and after, tier 2
Valve cover & crankshaft pulley
Cylinder head cover, ls160, s/n 124735 and after, tier 2
Rocker arms, ls160 before s/n 124735, ls170 after engine s/n 108982
Rocker arms, ls170, before engine s/n 108981
Rocker arms, ls160, s/n 124735 and after, tier 2
Camshaft
Crankshaft & pistons
Intake manifold
Exhaust manifold, ls160
Exhaust manifold, ls170
Timing gear case, governor
Oil pan, gauge & related parts
Oil pump & suction filter
Fuel injection system
Injection pump
Injector
Water pump & related parts, ls160
Water pump & related parts, ls170
Bucket circuit check valve
Engine attaching equipment pictorial index
Flywheel, bell housing & starter
Starter
Alternator mounting
Alternator
Air cleaner, muffler & fan, ls160
Air cleaner, muffler & fan, ls170
Air cleaner
Air cleaner inlet
Mufflers, aspirator & catalytic
Radiator
Fuel tank
Hydrostatic drive pictorial index
Final drive
Gearbox, rh & lh
Transmission centering
Hydrostatic pump & motor
Hydrostatic case drain
Piston pump, front
Piston pump, center manifold block
Piston pump, rear
Hydrostatic motor
Brakes
Brake, on-road, europe
Electrical pictorial index
Main electric
Electric power kit
Cab electric, north america
Cab electric, europe
Horn & turn signal, bsn
Horn & turn signal, asn
4-way flashers
Beacon kit & miscellaneous parts, on-road
Rear light bar, on-road, europe
Front headlamp, on-road, europe
Chassis electric
Back-up alarm kit
Engine electric
Hydraulic mounting plate electrical components
Hydraulic system pictorial index
Bucket hydraulics, standard
Bucket hydraulics, high flow
Boom hydraulics, standard
Boom hydraulics, high flow
Connect under pressure couplers
Bucket cylinder
Boom cylinder
Hydraulic gear pump
Control valve hydraulics
Control valve hydraulics, high fl0w
High flow hydraulics, toggle switch behind lh hydrostatic handle
High flow hydraulics, rocker switch on ignition panel
Control valve
Selector valve, high flow
Hydraulic reservoir & filter
Oil cooler, standard
Oil cooler, high-performance
High flow kit, ls160
High flow kit, ls170
2nd front auxiliary kit
Rear auxiliary hydraulics
Secondary control valve, eaton
Secondary control valve, eaton/vickers
Enhanced boom float kit
Hydraulic mounting plate
Hydraulic mounting plate cylinder
Hydraulic mounting plate valve
Hydraulic mounting plate boom hydraulcis
Sheet metal & decals pictorial
Rear hood
Fenders
Slow moving vehicle emblem kit
Decals, north america
Decals, europe
Boom & bucket pictorial
Boom
Boom, on-road, europe
Boom lock
Mounting plate
Cab, operator”s platform & controls pictorial
Cab
Fire extinguisher, mirror kit
Headliner
Headliner, new style (8/02-)
Headliner, cab heater
Headliner, cab heater, new style (8/02-)
Cab heater
Heater kit
Threshold & rear window, north america
Threshold & cab windows, europe
Cab enclosure kit, floor plate & windows
Cab enclosure kit, door attaching & wiring
Cab enclosure kit, door & door wiper motor
Cab door kit
Demolition door kit
Throttle control
Forearm rest kit
Seat, standard
Seat, suspension
Seatbelts, optional
Arm pad & armrest kit, standard seat
Boom & bucket foot control, hydrostatic levers
Boom & bucket foot control, kick panel, lh
Boom & bucket foot control, kick panel, rh
Boom & bucket foot control, pedals
Boom & bucket hand control, pedals
Boom & bucket hand control, hydrostatic levers
Boom & bucket hand control, kick panel, lh
Boom & bucket hand control, kick panel, rh
Boom & bucket hand control, tunnel components
Boom & bucket hand control kit
Multi-function handle, lh
Multi-function handle, rh
Multi-function handle control box
Wheels & tires pictorial
Wheels & tires
Chassis pictorial
Chassis
Counterweight kit
Accessories & kits pictorial
Cab jack kit
Tools, threaded insert
Attachments pictorial
Buckets & dirt tooth kit
Utility fork & universal mounting plate
Tooth bars
Pallet fork & 2 piece mounting assembly
Pallet fork & 1 piece mounting assembly
European attachments
Recommended initial parts stock list for 5 machines
