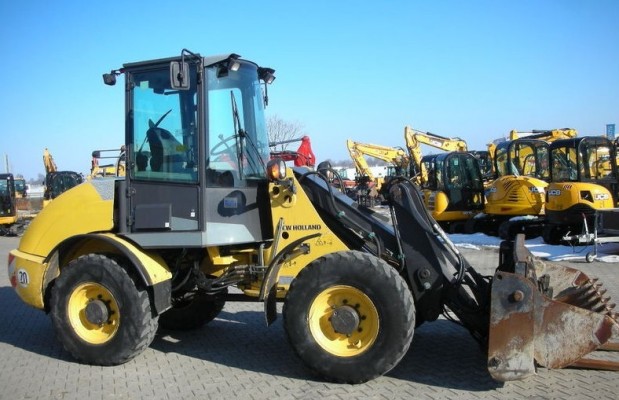

Recommendation of instruction New Holland W70 Compact Wheel Loader Parts Catalogue Manual



The most important feature of this manual is its professionalism. The manual objectively introduces and scientifically explains the contents of the product, so as to understand the characteristics of the product, master the operation procedures of the product, and know how to repair the New Holland W70 Compact Wheel Loader. The content of this manual is perfect, not like an instruction book, but more like a textbook. The new knowledge, new technology and graphic interpretation contained in it also play a role in spreading knowledge.



New Holland W70 Compact Wheel Loader Parts Catalogue Manual is divided by illustrations to show you the detailed structure and functions of the NEW HOLLAND W70 COMPACT WHEEL LOADER. The illustrations are clean and tidy, and its full of details. And the text at the bottom is also explained with the illustrations, which makes the whole display more stereoscopic.



Through the introduction of the above, I’m sure you can feel that this New Holland W70 Compact Wheel Loader Parts Catalogue Manual is both an illustrative introduction to the product and its main functions. It is practical, objective and accurate to reflect the product. Guidance includes the knowledge and form diversity of guiding consumers to use and maintain the product. The expression form is in the form of text, as well as tables, pictures and photos. I believe that as long as you have New Holland W70 Compact Wheel Loader Parts Catalogue manual, you can understand the performance, components and maintenance of this New Holland W70 Compact Wheel Loader, because this manual is really succinct but not simple, the content is substantial but not complicated. It is a real service for customers. This manual is enough about this skid steer loader.



Service Parts Catalogue Manual Covers:



Basic machine

Frame basic machine with mount. Parts

Front frame with mount. Parts

Joint parts frame

Rear frame with mount. Parts

Wheel cover install.material

Wheel cover

Steps install.material

Axles assembly set standard

Axles assembly set self-locking

Axles complete standard

Axles complete self-locking

Swing axle install.material standard

Swing axle install.material self-locking

Swing axle mounting parts standard

Swing axle mounting parts self-locking

Swing axle standard

Swing axle self-locking

Swing axle housing

Rigid axle install.material standard

Rigid axle mounting parts standard

Rigid axle housing

Rigid axle

Wheel hub front

Wheel hub planetary gear

Wheel hub rear

Wheels install.material 365/70r18em

Wheels install.material 335/80 r18

Wheels install.material 335/80r18em

Wheels install.material 12.5-18 mpt e91-2et10

Wheels install.material 12,5-18 10p

Wheels 12.5-18 mpt e91-2-et

Wheels 335/80r18em

Wheels 335/80 r18

Wheels 365/70r18em

Wheels 12,5-18 10p

Track extension 100 mm

Prop shaft install.material standard

Hyd. Oil tank install.material

Hyd. Oil tank

Cold start

Fuel tank

Ballast install.material

Rear weight install.material

Motor mounting parts

Regulation motor speed (option)

Exhaust system install.material

Exhaust system muffler

Intake system install.material

Fuel system2987067000 cooling system engine oil install.material

Comb. Cool. Syst. Water/oil mounting parts

Radiator engine oil

Transfer gearbox

Differential

Differential self-locking rear

Coupling/clutch

Service brake front axle

Hydraulic system basic machine

Hydraulic system driving

Hydraulic system work

Ridecontrol complete

Hydraulic system ridecontrol

Electrical system ridecontrol

Hydraulic system steering

Hydraulic system brake

Hydraulic system quick-hitch

Hydraulic system additional funct.

Gear pump install.material

Gear pump

Axial piston pump install.material

Axial piston pump

Drive device pump

Regulation pump

Axial piston motor install.material

Drive device hydraulic motor

Regulation hydraulic motor control unit

Regulation hydraulic motor

Regulation hydraulic motor lid

Gear motor fan

Hydraulic filter

Valve block install.material

Valve block

Distributor plate pump install.material

Hydraulic system valves solenoid valve

Press.rel.valve

Steering valve mounting parts

Steering valve

Valve max. Load control

Stop valve

Switch-over valve

Pressur.switch operators cab

Control block mounting parts

Control block mounting parts

Dump cylinder

Lift cylinder

Tip cylinder

Steering cylinder

Steering cylinder

Cylinder quick-hitch

Brake valve

Heating installation hp (option)

Heating mounting parts

Heating mounting parts hp (option)

Air condition install.material

Air condition install.material (option)

Air condition mounting parts

Liquefier install.material

Compressor install.material air condition

Electrical system basic machine complete

Electrical system front carriage

Cable harness front carriage

Electrical system rear carriage

Cable harness install.material rear carriage

Cable harness rear carriage

Central electronic relay circuit boa

Battery install.material

Main switch battery install.material

Main switch battery

Illumination front mounting parts left-hand

Illumination front mounting parts right-hand

Illumination rear install.material

Taillight brake light

Reversing light turn signal light

Lic. Plate light

Cable harness lic. Plate light

Air condition cable harness (option)

Dashboard

Gearshift lever

2988920000 electrical system operators cab

Cable harness operators cab kabine

Operators cab cable harness base

Operators cab cable harness roof

Headlight operators cab install.material rear

Headlight

Radio

Headlight install.material

Cable harness ridecontrol

Beacon light install.material

Beacon light

Signal install.material shiftable

Signal install.material permanent

Signal control panel backup signal

Anti-theft decice install.material

Anti-theft decice electrical system

Anti-theft decice cable harness

Operators cab assembly set heating

2988657000 operators cab assembly set

Operators cab assembly set air condition

Cab module heating

Cab module air condition

3cab module heizung hp

Cab module install.material

Cab module heating

Cab module air condition

Cab module

Operators cab mounting parts

Control column install.material

Cab door

Glazing operators cab

Skylight window (option) (s/n 534501-up)

Side door right-hand (s/n 534501-up)

Operators seat install.material mechan.suspension

Operators seat mechan.suspension

Operators seat top mechan.suspension

Operators seat bottom section mechan.suspension

Safety belt (option)

Licence pl.bracket install.material rear

Engine hood install.material

Equipment

Protector 1900mm

Mast install.material

Mast mounting parts

Mast

Clamshell install.material 650l-1900mm

Clamshell mounting parts 650l-1890mm

Clamshell 650l-1890mm

Clamshell assembly parts

Hydraulic system clamshell

Loading bucket install.material 800l – 1900

Loading bucket install.material 700l-1900mm

Bucket mounting parts 700l-1900mm

Bucket mounting parts 800l-1900mm

Loading bucket 800l-1900mm

Bucket 700l-1900mm

Loading bucket assembly parts

Blade install.material 1900mm

Load hook

Fork carriage protector

Fork carriage

Fork carriage

Fork carriage complete

Assembly parts fork carriage

Forks 100x45x1200

Position indicator

7lift arm look

Pipe-break protec. Install.material

Pipe-break protec. Tip cylinder

Pipe-break protec. Lift cylinder

Shutoff device cylinder

Decal kit design

Decal kit character

Tool set

Toolbox install.material

Toolbox

Engine

Motor

Dipstick

Oil sump

Power take-off

Flywheel

Filler cap

Cyl.head cover

Lube oil filter

Filter bracket

Heating

Water supply

Injection valve

Bracket

Filter cartridge

Fuel pump

Fuel line

Injection pipe

Fuel line

Cap/controller

Flange

Exhaust collector

Generator

Starter motor

Air shield

Fastening parts

Narrow v-belt

Engine mounting

Bracket

Control unit

Cable harness

Oil press.switch

Temp.transmitter

Engine shut-down

Cable harness

Heater plug
