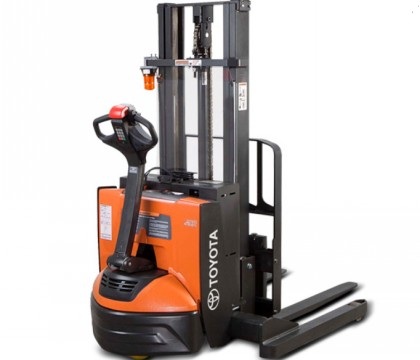

Recommendation of instruction Toyota 6BWS10 / 6BWS13 Electric Walkie Adjustable Straddle Stacker Service Repair Manual
The most important feature of this manual is its professionalism. The manual objectively introduces and scientifically explains the contents of the product, so as to understand the characteristics of the product, master the operation procedures of the product, and know how to repair the Toyota 6BWS10 / 6BWS13 Electric Walkie Adjustable Straddle Stacker. The content of this manual is perfect, not like an instruction book, but more like a textbook. The new knowledge, new technology and graphic interpretation contained in it also play a role in spreading knowledge.
Toyota 6BWS10 / 6BWS13 Electric Walkie Adjustable Straddle Stacker Service Repair Manual is divided by illustrations to show you the detailed structure and functions of the Toyota 6BWS10 / 6BWS13 Electric Walkie Adjustable Straddle Stacker. The illustrations are clean and tidy, and its full of details. And the text at the bottom is also explained with the illustrations, which makes the whole display more stereoscopic.
Through the introduction of the above, I’m sure you can feel that this Toyota 6BWS10 / 6BWS13 Electric Walkie Adjustable Straddle Stacker Service Repair Manual is both an illustrative introduction to the product and its main functions. It is practical, objective and accurate to reflect the product. Guidance includes the knowledge and form diversity of guiding consumers to use and maintain the product. The expression form is in the form of text, as well as tables, pictures and photos. I believe that as long as you have Toyota 6BWS10 / 6BWS13 Electric Walkie Adjustable Straddle Stacker Service Repair manual, you can understand the performance, components and maintenance of this Toyota 6BWS10 / 6BWS13 Electric Walkie Adjustable Straddle Stacker, because this manual is really succinct but not simple, the content is substantial but not complicated. It is a real service for customers. This manual is enough about this skid steer loader.
Covered models:
6BWS10 SN: 585890 – UP
6BWS13 SN: 585890 – UP
1Electrical System Manual an Wiring Diagrams, PDF, 11 pages
2 Main Service manual, PDF, 102 Pages
Contents:
Parts ordering instructions
Technical Data
Introduction, Maintenance
Service Program
Cleaning and Washing
External Cleaning
Motor Compartment Cleaning
Electrical Components
Safe Jacking
Planned Maintenance
Maintenance Schedule
Lubrication Schedule
Oil and Grease Specification
Tools
Super Seal Connectors
AMP Connectors
Other Tools
Support Arm Chassis
General
Main Components
Maintenance
Support Arm Width Adjustment
Support Arm Replacement
Electric Drive Motor
Component Parts
Motor Dismantling from Truck
Assembling
Service/Repairs
Motor Dismantling
Motor Assembling
Cleaning
Technical Data
Drive Unit/Gear
Component Parts
Technical Data
Top Cover Leakage
Drive Shaft Sealing Ring Replacement
Electromagnetic Brake
Brake Main Components
Maintenance
Basic Gap Adjustment
Brake Disc Replacement
Steering
Component Parts, Steering (Tiller) Arm
Brake Microswitch Adjustments
Steering (Tiller) Arm Handle
Dismantling/Assembling
Electrical Systems
Electrical Parts
List of Symbols and Electrical Wiring Diagram
Electrical Diagram 1(6)
Electrical Diagram 2(6)
Electrical Diagram 3(6)
Electrical Diagram 4(6)
Electrical Diagram 5(6)
Electrical Diagram 6(6)
Functional Description
Starting the Truck
Driving
Neutral Speed Reduction
Picture 3
Neutral Speed Reduction on Slopes
Braking
Forks Lifting
Forks Lowering
Horn
Hour Meter
Fault Codes
Parameters
Driver Parameters
Service Parameters
Parameter Description
Part Numbers
Transistor Panel
General
Diagnostic and Troubleshooting
Error Codes and Troubleshooting
Resetting Errors
Technical Specifications Curtis 1243
Hydraulic System
Hydraulic Diagram and Components
Main Components
Description
Main lift chain system
Checking the chain settings
Chain inspection
Noise
Surface rust
Rusty links
Stiff links
Pin rotation
Loose pins
Outline wear
Stretching
Damage
Damaged discs
Damaged pins
Dirty chain
Cleaning
Lubrication
